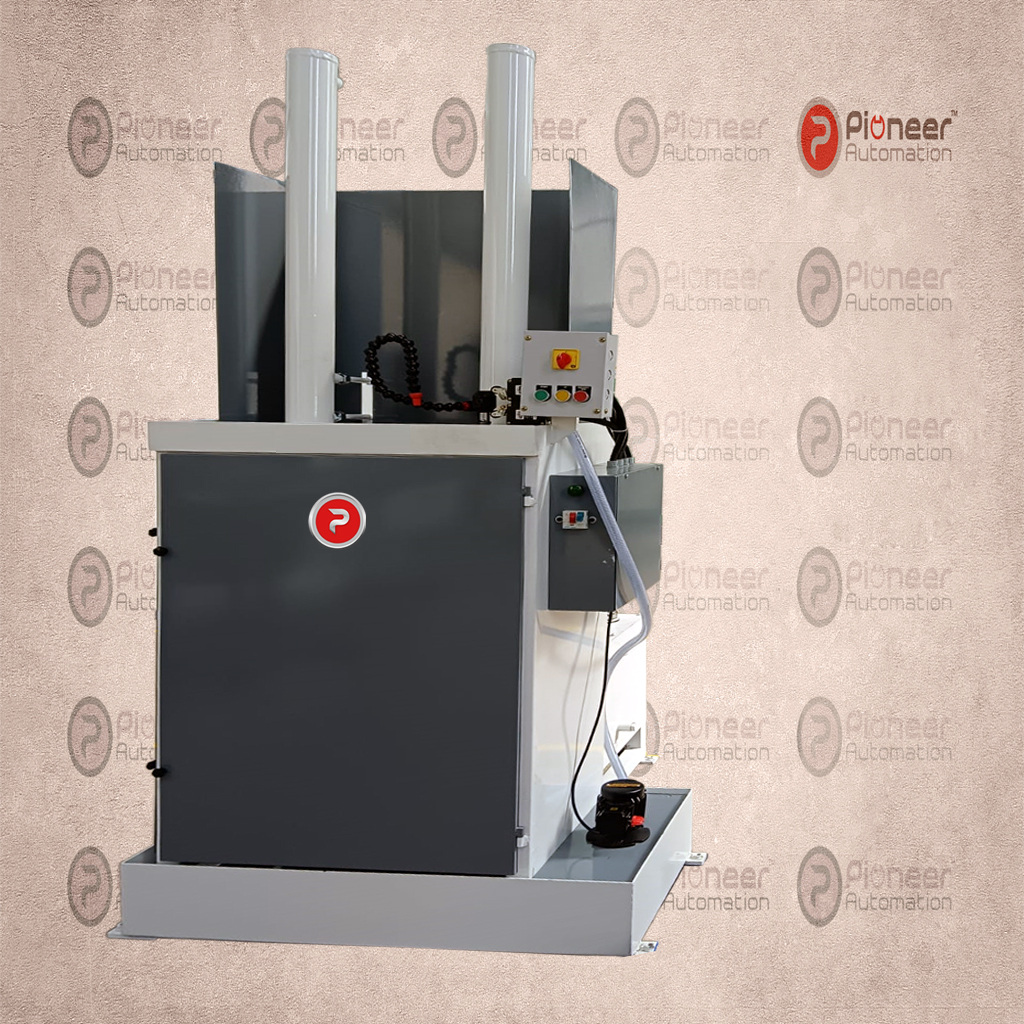

Pioneer Vertical Broaching Machine BM-1010V / BM-1515V is designed for spline and keyway machining on workpieces with 10-ton / 15-ton broaching force and 1000 mm / 1500 mm stroke capacity. BM-1010V / BM-1515V is fabricated with a welded and machined steel monoblock structure. Different types of broaching tools can be used for keyway, spline, ratchet, rectangle, hexagon and other profiles.
The Pioneer BM-1010V / BM-1515V consists of a bed or base designed around the broaching stroke, with a broach pilot and drive mechanism for the broaching operation. A PLC is used to control the overall machine operation.
Technical Specifications
Capacity
BM-1010V
BM-1515V
Max. Stroke :
1000 mm
1500 mm
Cutting Speed :
3300 mm/min
3300 mm/min
Return Speed :
9200 mm/min
9200 mm/min
Guide Safe Diameter :
80-90 mm
90-100 mm
Hydraulic Capacity :
10-12 ton
15-17 ton
Motor Power :
7.5 HP
10 HP
Automation Panel
PLC Type :
Standard
Standard
HMI Size :
4.7 Inch
4.7 Inch
Automation Grade :
Automatic (Hydraulic Push Type)
Automatic (Hydraulic Push Type)
Motor Control :
Switch Gear
Switch Gear
Other Installation Data
Coolant Tank Capacity :
15 Liter
15 Liter
Body Structure :
Mild Steel
Mild Steel
Machine Weighte :
1450 (Approx.) Kgs
2100 (Approx.) Kgs
Machine Dimensions (WxDxH) (Approx) :
32” x 23” x 64” (Approx.)
32” x 28” x 72” (Approx.)
Automatic Retrieval System :
Optional
Optional
- The overall Machine Operation is handled with a Programmable Logic Controller (PLC)
- Enhances production rate
- Provides high-quality surface finish and accuracy
- One tool pass can perform rough and finishing cuts
- Suitable for both internal and external broaching
- Can machine workpieces in different shapes and profiles
- Cutting fluid can be applied to the effective area for efficient broaching
- Aerospace Industry
- Automotive Manufacturing
- Medical Devices
- Tool and Die Industry
- Heavy Machinery Industry
- Military and Defense Weaponry Components
- Customization & Prototyping
