CNC Milling Machine(FIXED TABLE)
(PCM)

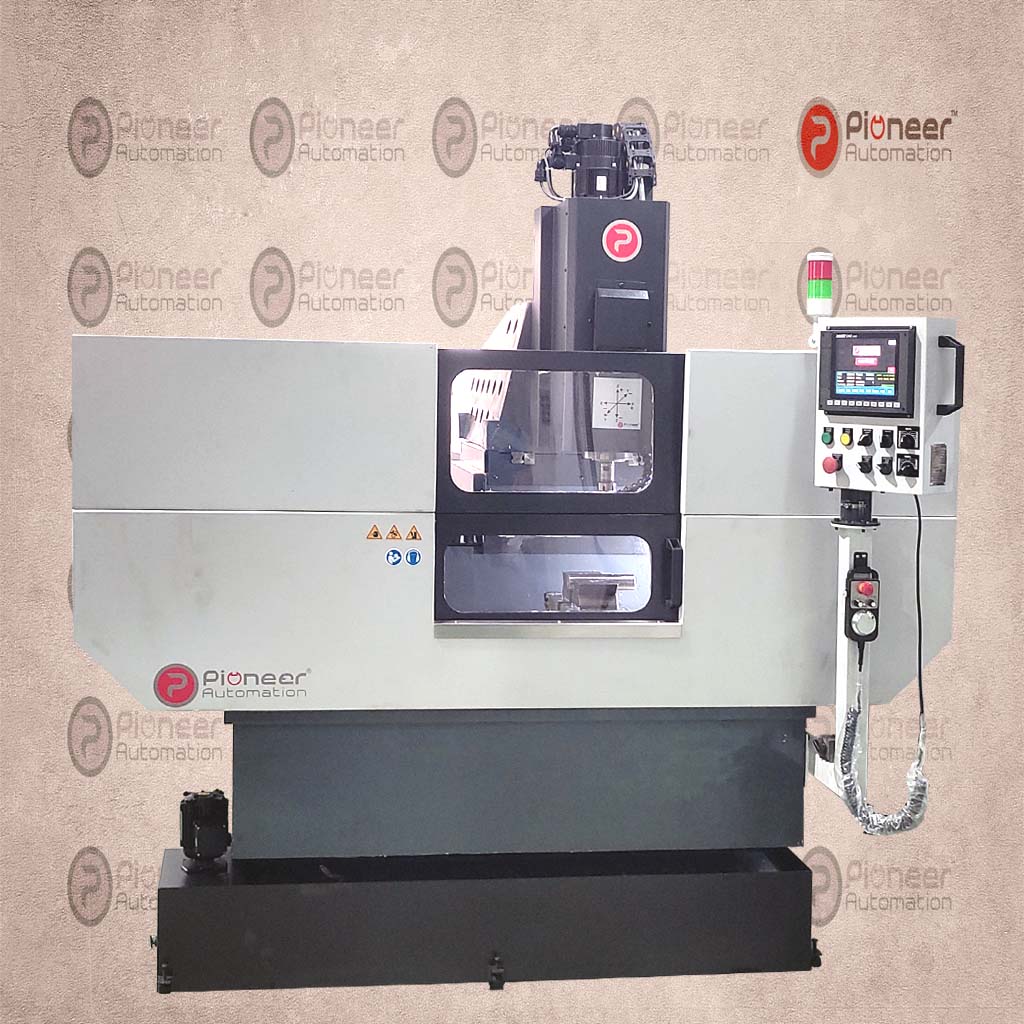

PIONEER CNC MILLING MACHINE PCM Series (Fixed Table) provides an economical solution for milling jobs in a compact package that is loaded with full-size features. And they’re a valuable addition for shop needing a “Second-Op” machine.
Unique design based on monolithic bed assures static and dynamic rigidity. Perfect machining performance and high surface quality.
Technical Specifications
Capacity
PCM-533H
PCM-744H
PCM-1055H
X-Axis Travel :
500 mm
700 mm
1000 mm
Y-Axis Travel :
300 mm
400 mm
500 mm
Z-Axis Travel :
300 mm
400 mm
500 mm
Rapid Feed Rates X/Y/Z Axis :
24/24/24 M/Min
24/24/24 M/Min
24/24/24 M/Min
Distance From Table Top to Spindle Face :
75 mm
75 mm
75 mm
Table
Table Size (Clamping Area) :
650x450 mm
850x550 mm
1150x650 mm
No./Width/CD Of T-Slots :
3/14/100 mm
3/14/100 mm
3/14/100 mm
Max Safe Load On Table :
500 Kg
500 Kg
600 Kg
Main Spindle
Taper :
BT30/ER32
BT40/ER40
BT40/ER40
RPM :
8000
8000
8000
Cutting Feed Rate :
1-8000 mm/M
1-8000 mm/M
1-8000 mm/M
Spindle Motor Continuous Rating :
3.7 KW
3.7 KW
5.5 KW
Automatic Tool Changer (Optional)
No. Off Tools :
8
8
8
Max. Tool Diameter (Pocket Full/Empty) :
80 / 125 mm
80 / 125 mm
80 / 125 mm
Tool Selection :
Random
Random
Random
Max. Tool Length :
250 mm
250 mm
250 mm
Max. Tool Weight :
7 KG
7 KG
7 KG
Accuracy
Positioning :
0.01 mm
0.01 mm
0.01 mm
Repeatability :
0.007 mm
0.007 mm
0.007 mm
Installation Data
Machine Weight (Approx) :
2600 Kg
2900 Kg
3500 Kg
Total Connected Load :
15 KVA
15 KVA
20 KVA
Power Supply :
3-PH / 440VAC
3-PH / 440VAC
3-PH / 440VAC
Machine Dimensions (WxDxH) (Approx) :
66” x 66” x 78H” (Approx.)
74” x 74” x 78H” (Approx.)
82” x 78” x 84H” (Approx.)
Operating System
Syntec :
F-11
F-11
F-11
Hust :
A60
A60
A60
Mitsubishi :
E-80
E-80
E-80
- Fixed Table (constant travelling mass of X, Y and Z axis slides; workpiece does not move!)
- Standard ER / BT Spindle
- In-line Spindle
- 24m/min rapid speed,
- 8m/min cutting feed
- Roller Guideways
- User friendly job settings
- Silent operation & smooth cutting
- Easy to operate for any lay-man person
- Aerospace Industry
- Automotive Manufacturing
- Medical Devices
- Tooling and Mold Making
- Machine Tool Industry
- General Manufacturing
- Customization & Prototyping
