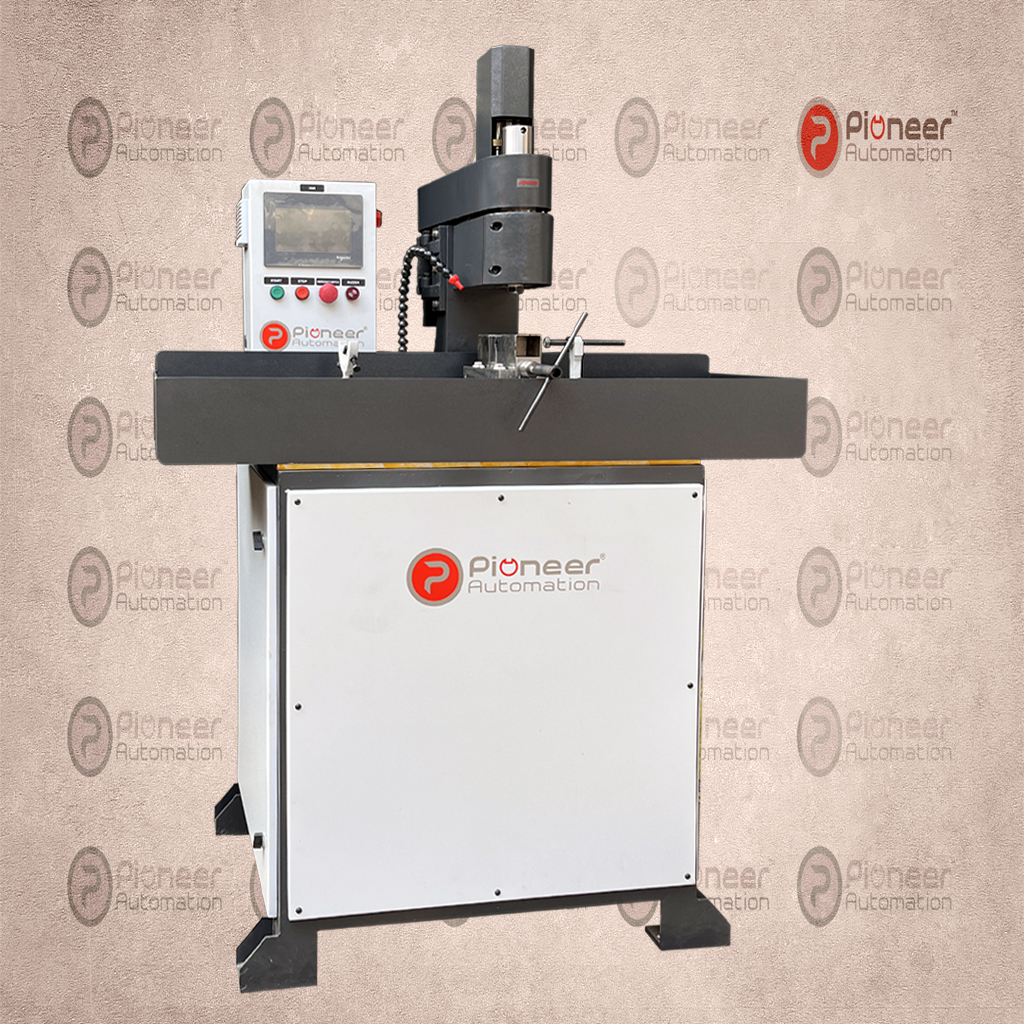

Automatic Key Way Milling Machine (PTS)

This is an automatic key-way milling machine specially designed for making key-ways on shafts. It is robustly design SERVO Mechanism to achieve precise key-ways at high production. In this machine depth of cut and Table length are controlled by SERVO MOTOR.
The Programmable Logic Controller (PLC) provide smooth function of Spindle Mechanism and Table length control. Human Machine Interface (HMI) grant automatic Depth of Cut and intelligent Table length setting. At the end, achieving desired depth, the machine gets automatically stopped with instant buzzer sound. The Spindle and Table are automatically reaches to its home position after successfully completion of one job cycle.

  1. The overall Machine Operation handled with Programmable Logic Controller (PLC)
  2. Intelligent Table length setting through HMI
  3. Easily achieve P9 Tolerance
  4. Depth of cut can be controlled by SERVO Mechanism
  5. Touch Screen HMI provides smooth operation and user friendly job settings
  6. Self-centering vice is used for holding the shaft or job
  7. Very easy setting of length for making Key-way
  8. Silent working & smooth cutting of key-way
  9. Easy to operate for any lay-man person
  10. Very easy operating compared to lathe machine or conventional milling machine
  11. Maintenance free machine
  1. Tablet Die-punch (Pharmaceutical) industry
  2. Gearbox, Submersible Pump &Electric Motor Manufacturers
  3. Textile, Printing & Packaging Machinery Manufacturers
  4. Engineering Job Works
  5. Machine Tool Industry

Specifications


PTS-1
PTS-2
PTS-3
Max. Spindle Speed :
2000 RPM
400-3500 RPM
200-3800 RPM
Table Feed :
0-0.6 mtr./Min.
0-0.6 mtr./Min.
0-0.6 mtr./Min.
Shaft Diameter :
9 mm - 60 mm
9 mm - 85 mm
9 mm - 100 mm
Max. Length of Key-Way :
5 mm - 150 mm
5 mm - 200 mm
5 mm - 250 mm
Key-Way Size :
3 mm - 14 mm
3 mm - 16 mm
3 mm - 20 mm
Depth of Cut :
0.1 to 0.3 mm
0.1 to 0.3 mm
0.1 to 0.3 mm
Standard Collet :
ER-20
ER-25
ER-32
Coolant Pump :
Optional
Required
Required
